03 / COOKING APPLIANCES
Platforms for locking, power regulation and rotary motion in ovens, ranges and microwaves.
CHOOSE A SOLUTION
SYSTEM VALUE
Functional application guide. Confirm location, mounting, load and interfaces against the appliance design.
| Component | Application / function | Selection constraints |
|---|---|---|
| Synchronous Motor ST-D49T | Microwave ovens, automatic valves and fans | Voltage: 220-240 V · Output speed: 2.5 / 3 rpm |
| Oven-Latch Synchronous Motor ST-D49D | Oven door latches | Rated voltage: 110-130 / 220-240 V AC · Output speed: 1.652 rpm (50 Hz) / 1.982 rpm (60 Hz) · Output torque: 8(125°) / 12(25°) kgf·cm |
| Oven Door Lock | European oven platforms | Rated voltage: 110-130 / 220-240 V AC · Output speed: 1.652 rpm (50 Hz) / 1.982 rpm (60 Hz) · Output torque: 8(125°) / 12(25°) kgf·cm |
| Infinite Switch | Electric ranges and ovens | Rated voltage: 240 V · Maximum current: 15 A · Control branches: Single / dual / triple |
PRODUCT PORTFOLIO
Standard platform data shown below. Voltage, interfaces, mounting and output can be co-engineered for each program.
03.01D49 low-speed drive platform

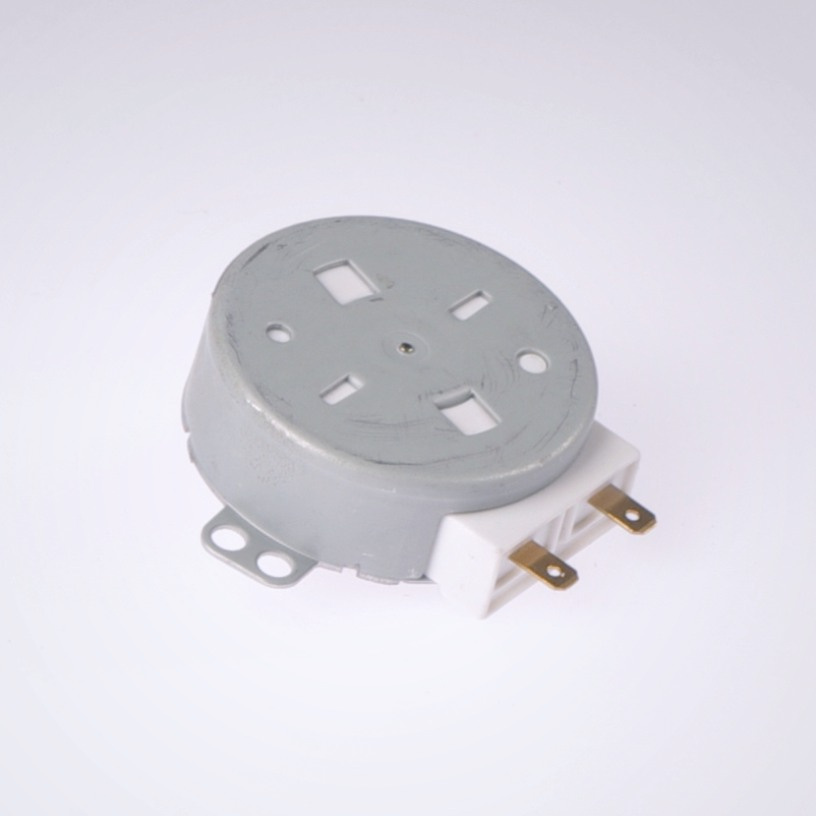

ST-D49T
ApplicationMicrowave ovens, automatic valves and fans
A compact low-speed synchronous motor for microwave trays, automatic valves and fan mechanisms.
03.02High-temperature latch-drive platform

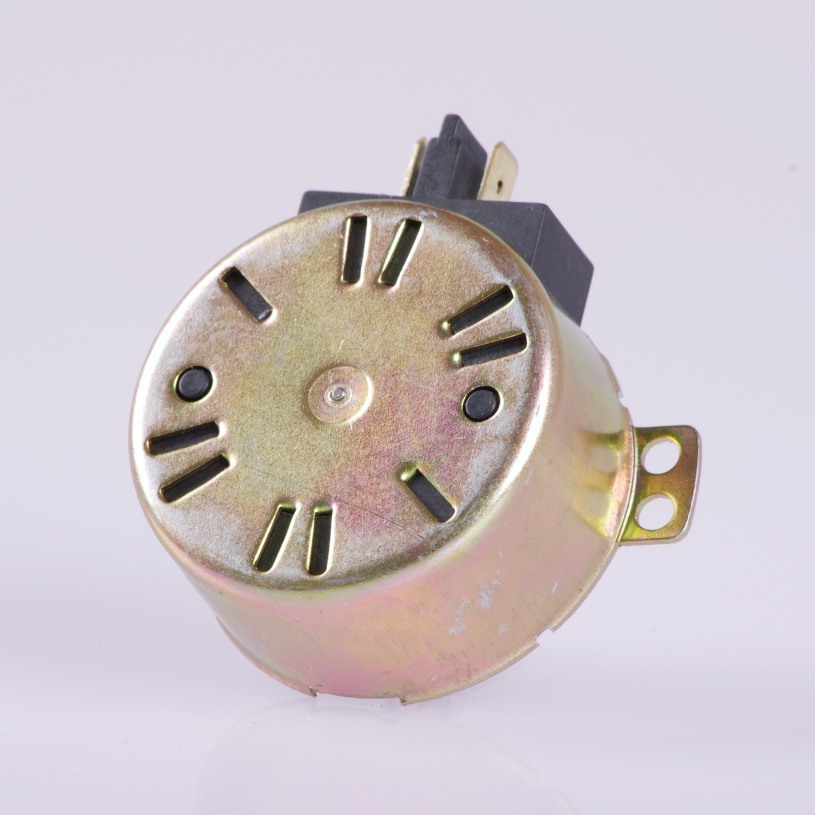

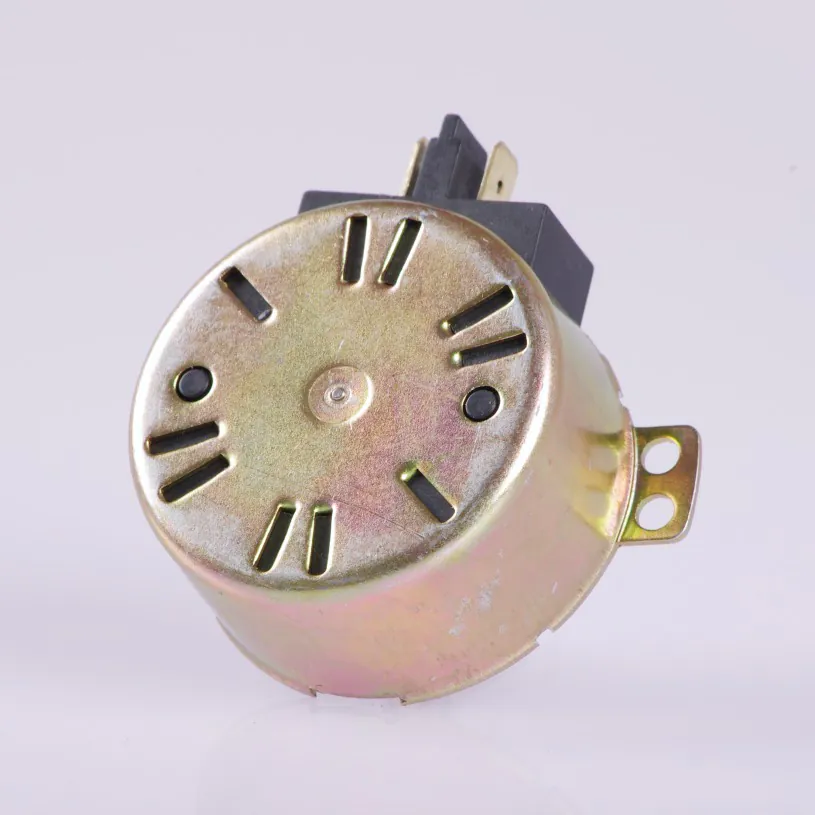

ST-D49D
ApplicationOven door latches
Controlled low-speed actuation and stable torque for oven latches across 110-130 V and 220-240 V platforms.

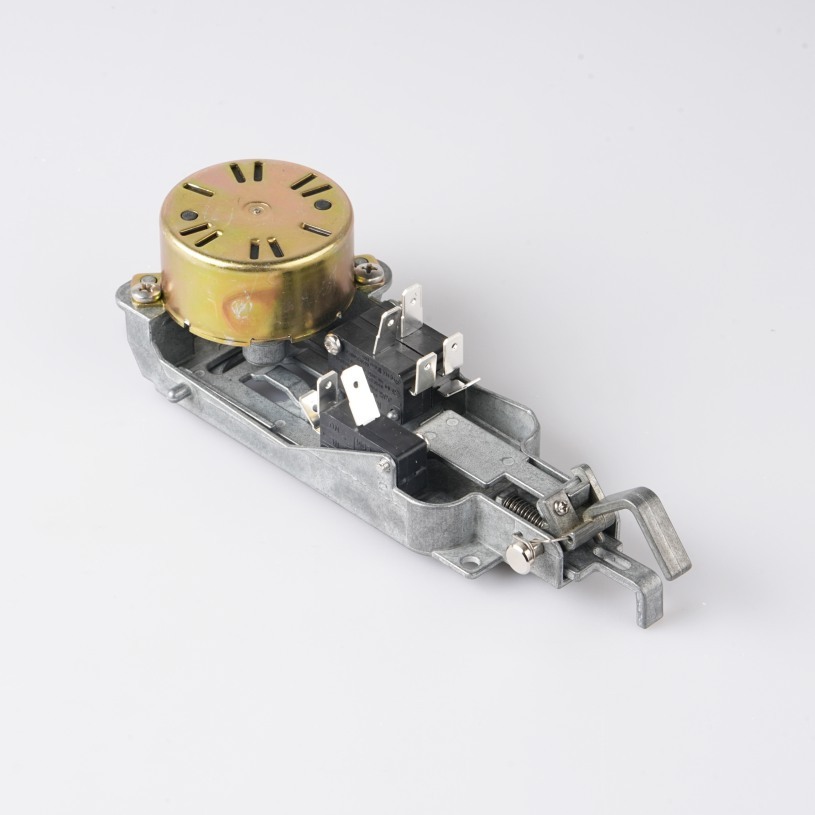

03.03Extended-linkage high-temperature interlock
ApplicationEuropean oven platforms
An extended-linkage lock architecture for mechanical adaptation across oven cavities and mounting positions.

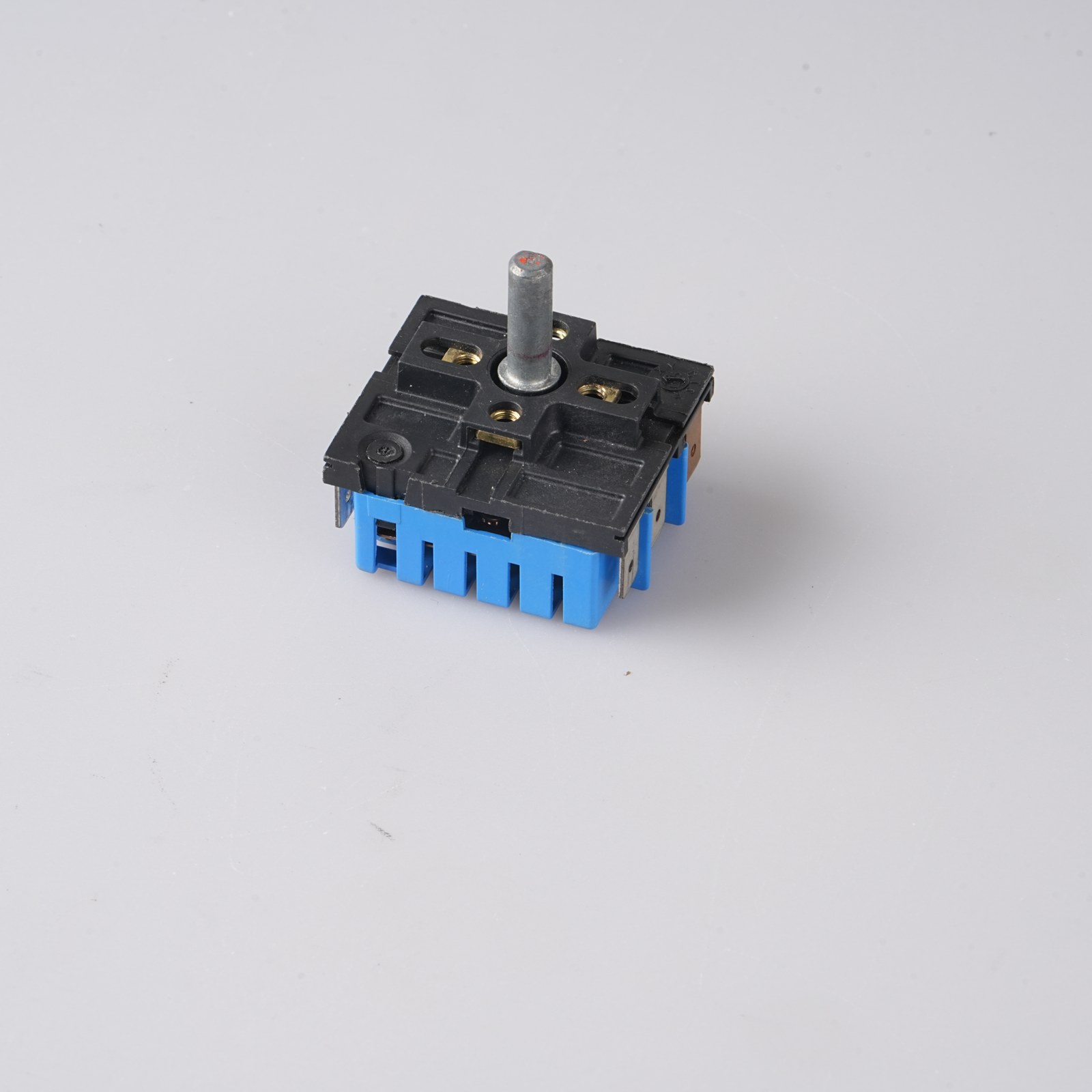

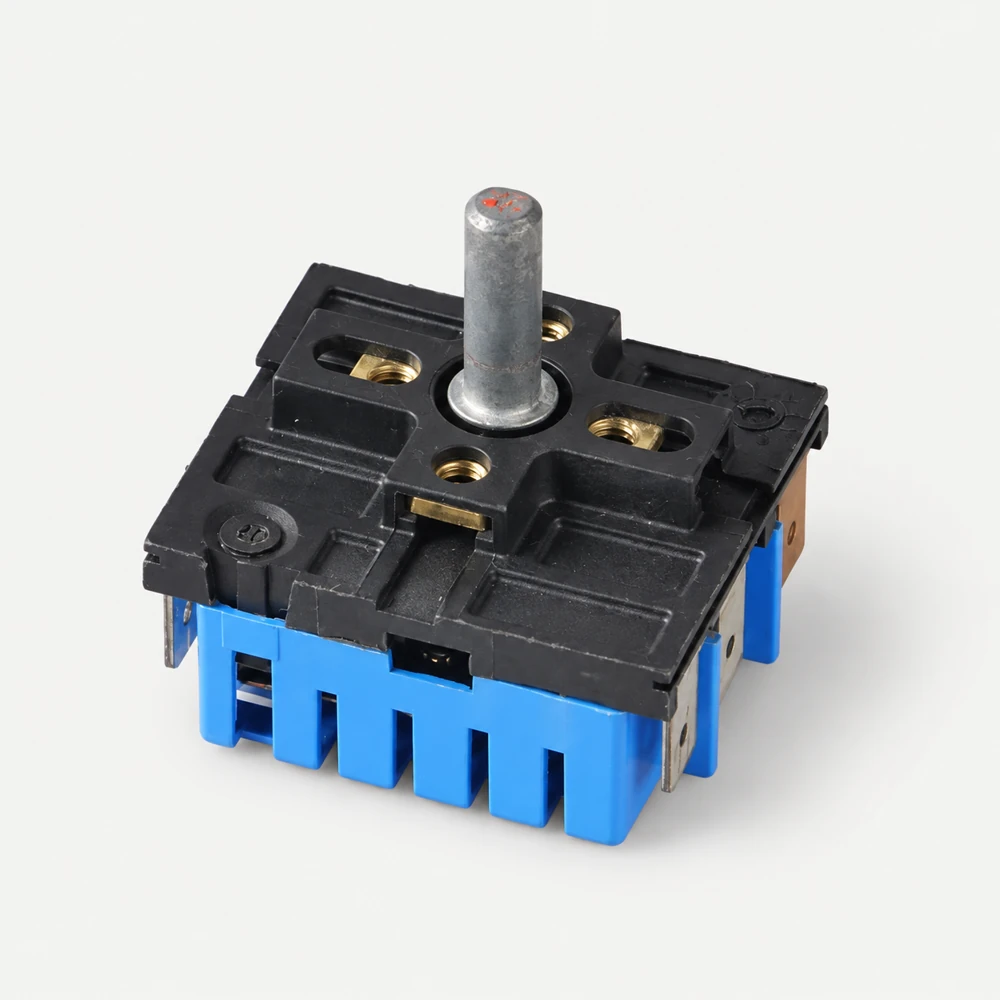

03.04Multi-circuit power-regulation platform
ApplicationElectric ranges and ovens
Rotary regulation of heating loads with single-, dual- and triple-circuit configurations and terminal layouts.
WORKING TOGETHER
Share the model, electrical ratings, mounting needs and target market to define the component.
Agree sample specifications, test conditions and acceptance criteria.
Align drawing revisions, tooling and critical inspection points.
Confirm the production site, volume, traceability and delivery plan.
Start with the application. Co-engineer the next appliance component.
