Multi-circuit power-regulation platform

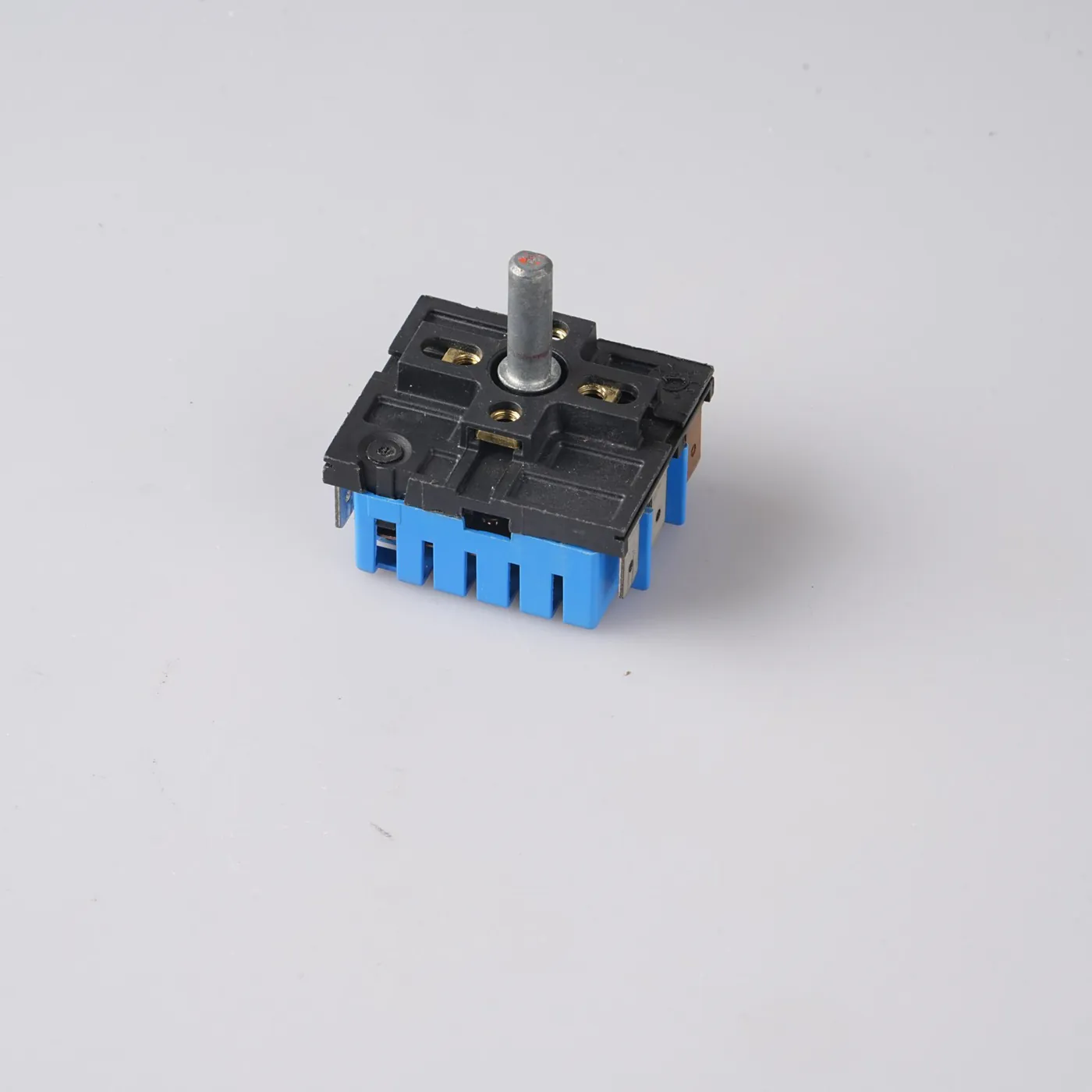

Infinite Switch
Rotary regulation of heating loads with single-, dual- and triple-circuit configurations and terminal layouts.
Public data revised · 2026-09-09
APPLICATION & DATA
Electric ranges and ovens
Public selection data. Voltage, frequency, output, mounting and leads are confirmed by model and approved drawing.
- Rated voltage
- 240 V
- Rotation
- CCW
- Control branches
- Single / dual / triple
- Maximum current
- 15 A
- Control type
- Voltage control
DRAWINGS & PROJECT DOCUMENTS
Confirm fit, interfaces & validation
Download the public specification above. Request mounting and terminal views, dimensional drawings, configuration options and applicable certificates for your model.
- Appliance location & available space
- Electrical & mechanical interfaces
- Load, life & test conditions
- Target market & customer standards
Start with the application. Co-engineer the next appliance component.
