Washer Solutions

A complete product portfolio for washer drain actuation, program control and transmission.

SYSTEM VALUE

Multiple drain-motor formats cover different recovery forces, strokes, cable lengths and mounting pitches, supported by timing and transmission components.

01Drain-valve actuation
02Fast reset
03Program timing
04Transmission matching

PRODUCT PORTFOLIO

Key components & specifications

Standard platform data shown below. Voltage, interfaces, mounting and output can be co-engineered for each program.

Drain Motor02.01

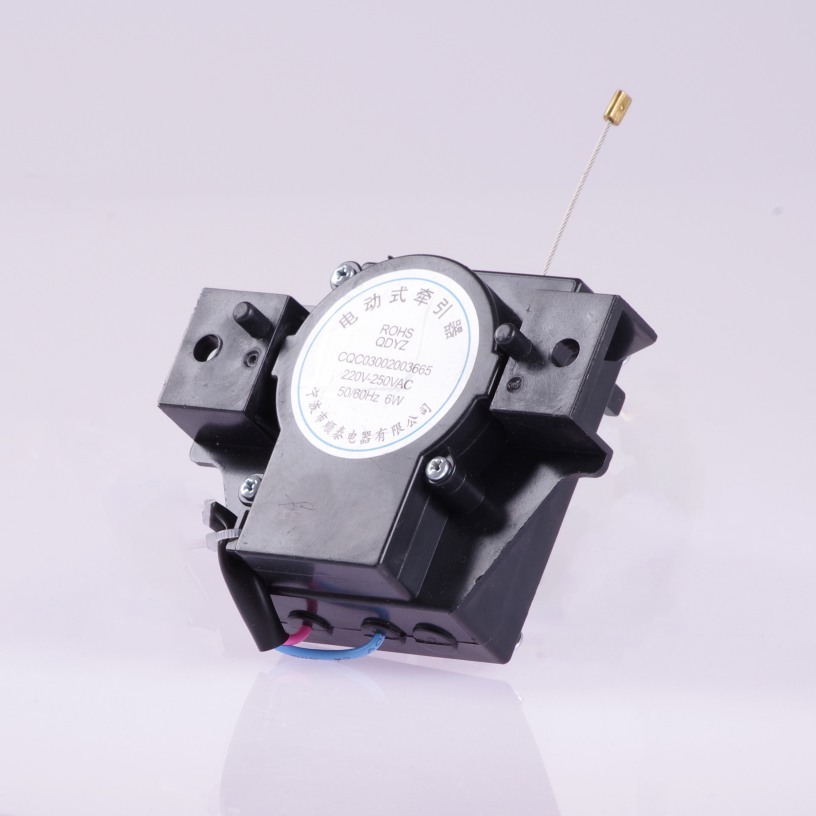

Asian washer drainage platform

Drain Motor

QDYZ-BSD-1

ApplicationAutomatic washing machines

Stable-stroke drain-valve actuation with fast reset for automatic washing machines.

Recovery force
<10 N
Reset time
<1 s
Traction time
<7 s
Steel-wire length
49±1 mm
Working voltage
220 V, 60 Hz
Stroke / pitch
23±1 / 90±1 mm
Product page→Request a quote→
Drain Motor02.02

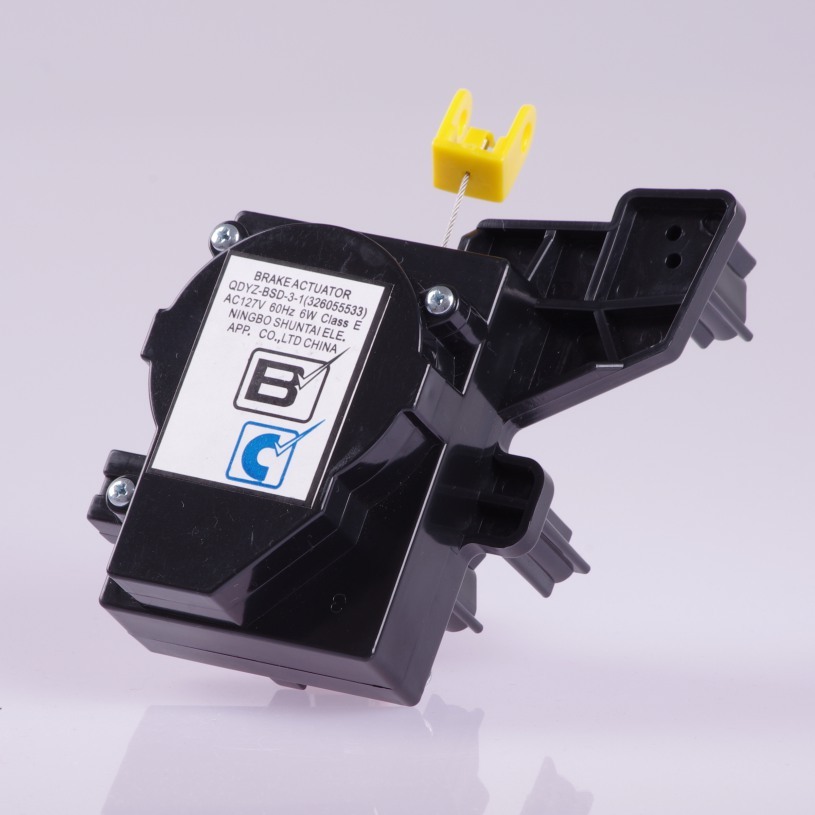

Dual-voltage washer drainage platform

Drain Motor

QDYZ-BSD-3

ApplicationAutomatic washing machines

Compact drainage actuator for automatic-washer mechanisms and dual-voltage platforms.

Recovery force
<10 N
Reset time
<1 s
Traction time
<7 s
Steel-wire length
25±1 mm
Working voltage
110 / 220 V, 60 Hz
Stroke
24±1 mm
Product page→Request a quote→
Drain Motor02.03

Automatic-washer actuation platform

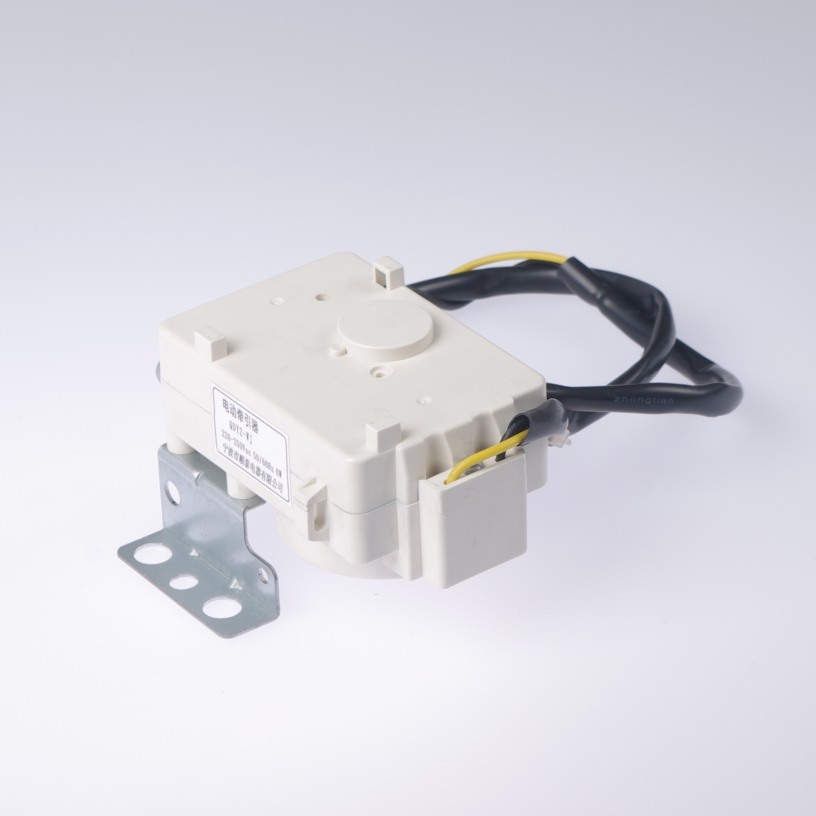

Drain Motor

QDYZ-WJ

ApplicationAutomatic washing machines

A high-recovery-force platform for washer mechanisms requiring robust reset performance and stable mounting.

Recovery force
>80 N
Reset time
<1 s
Traction time
<7 s
Steel-wire length
30±1 mm
Working voltage
220 V, 60 Hz
Stroke / pitch
23±1 / 75±1 mm
Product page→Request a quote→
Drain Motor Family02.04

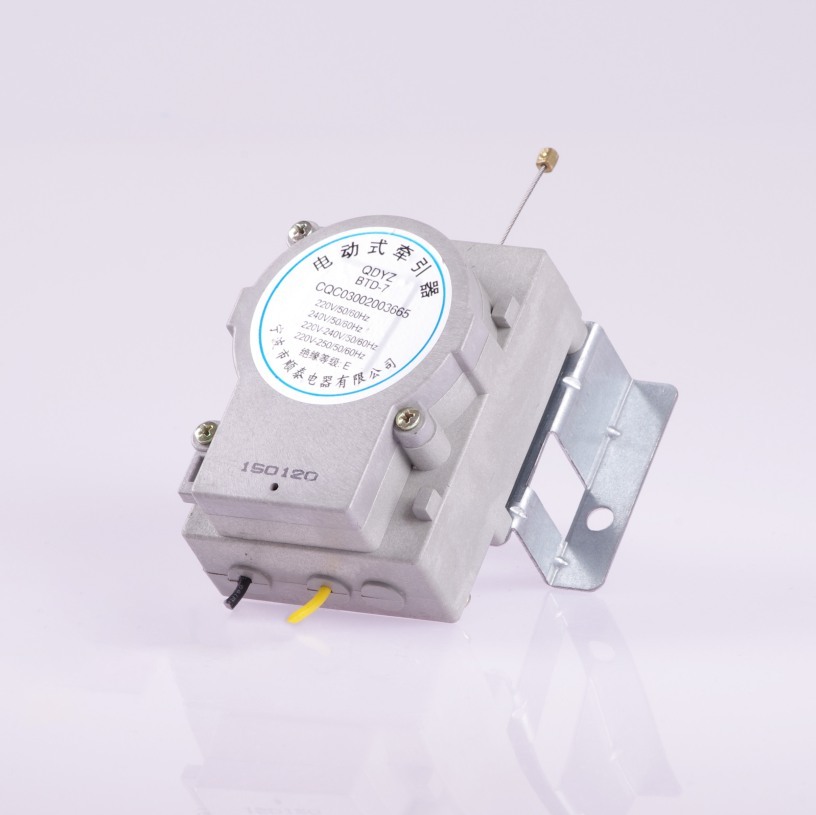

Multi-format drainage platform

Drain Motor Family

QDYZ-BTD-7 / BTD-12 / BTS-14

ApplicationMulti-platform automatic washing machines

Three mechanical formats cover different traction times, cable lengths, strokes and mounting pitches.

Models
BTD-7 / BTD-12 / BTS-14
Recovery force
<10 N
Traction time
<7 s
Steel-wire length
38±1 / 31±1 / 38±1 mm
Working voltage
220 V, 60 Hz
Stroke / pitch
23/23/27 mm · 70/78/78 mm
Product page→Request a quote→

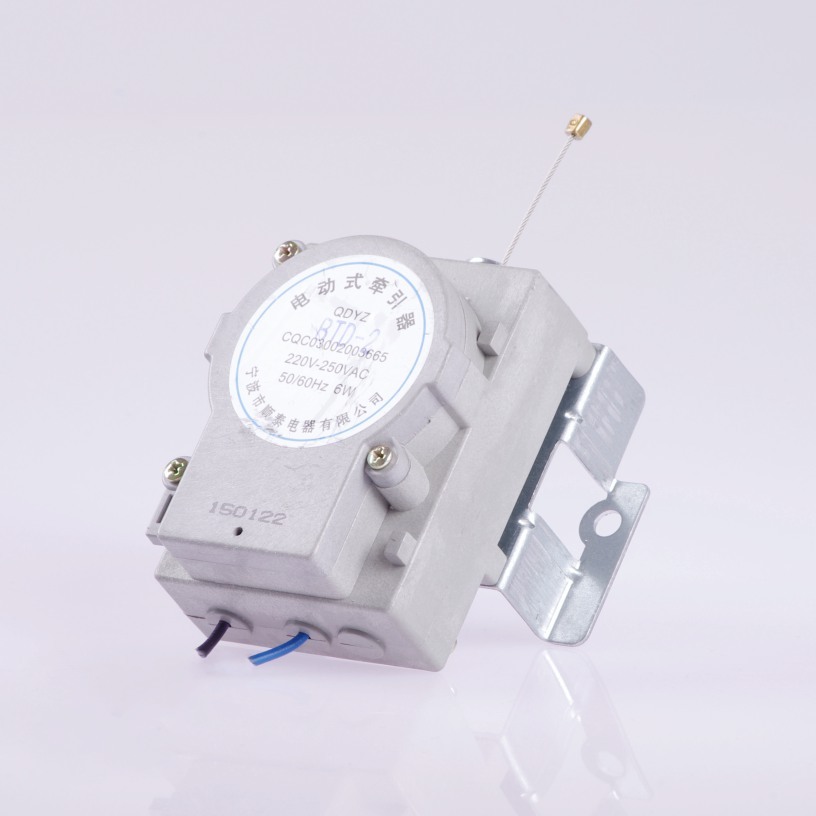

Drain Motor02.05

Automatic-washer drainage platform

Drain Motor

QDYZ-BTD-2

ApplicationAutomatic washing machines

A standardized metal-bracket platform balancing compact installation, traction stroke and fast reset.

Recovery force
<10 N
Reset time
<1 s
Traction time
<7 s
Steel-wire length
30±1 mm
Working voltage
220 V, 60 Hz
Stroke / pitch
26±1 / 65±1 mm
Product page→Request a quote→
Drain Motor02.06

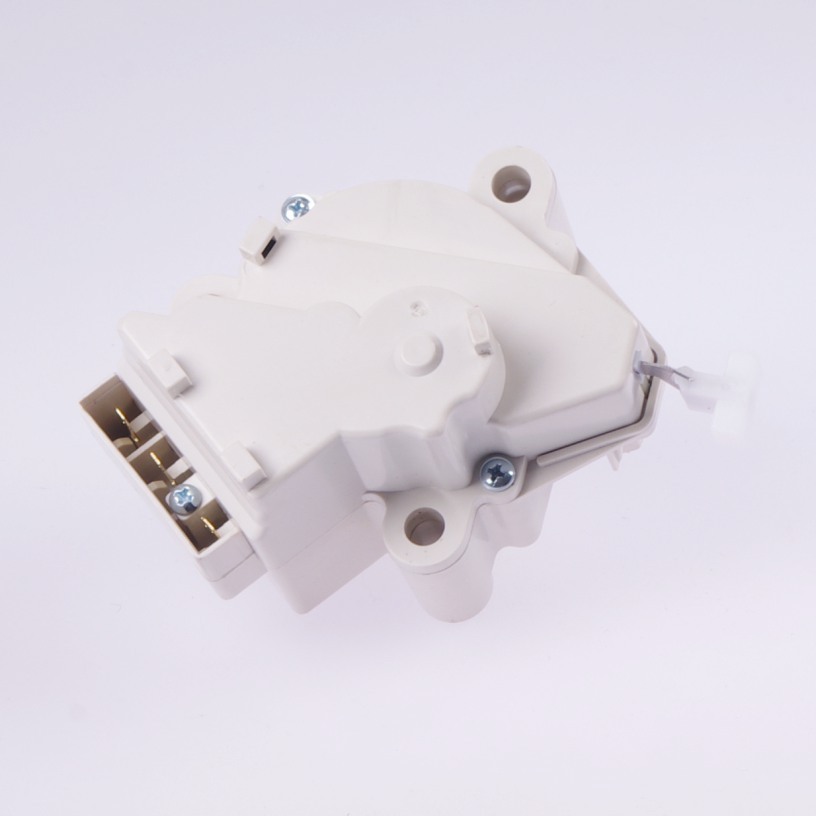

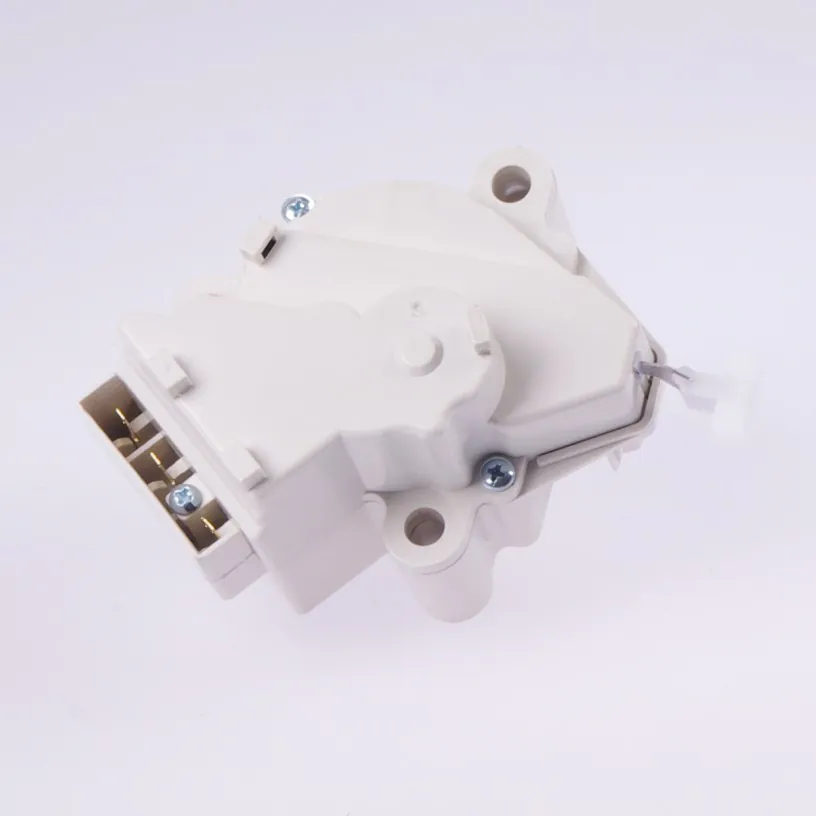

Integrated washer drainage platform

Drain Motor

QDYZ-B

ApplicationAutomatic washing machines

Integrated housing and terminal architecture for reliable drainage actuation in automatic washers.

Recovery force
<10 N
Reset time
<1 s
Traction time
<7 s
Steel-wire length
37±1 mm
Working voltage
220 V, 60 Hz
Stroke / pitch
26±1 / 75±1 mm
Product page→Request a quote→

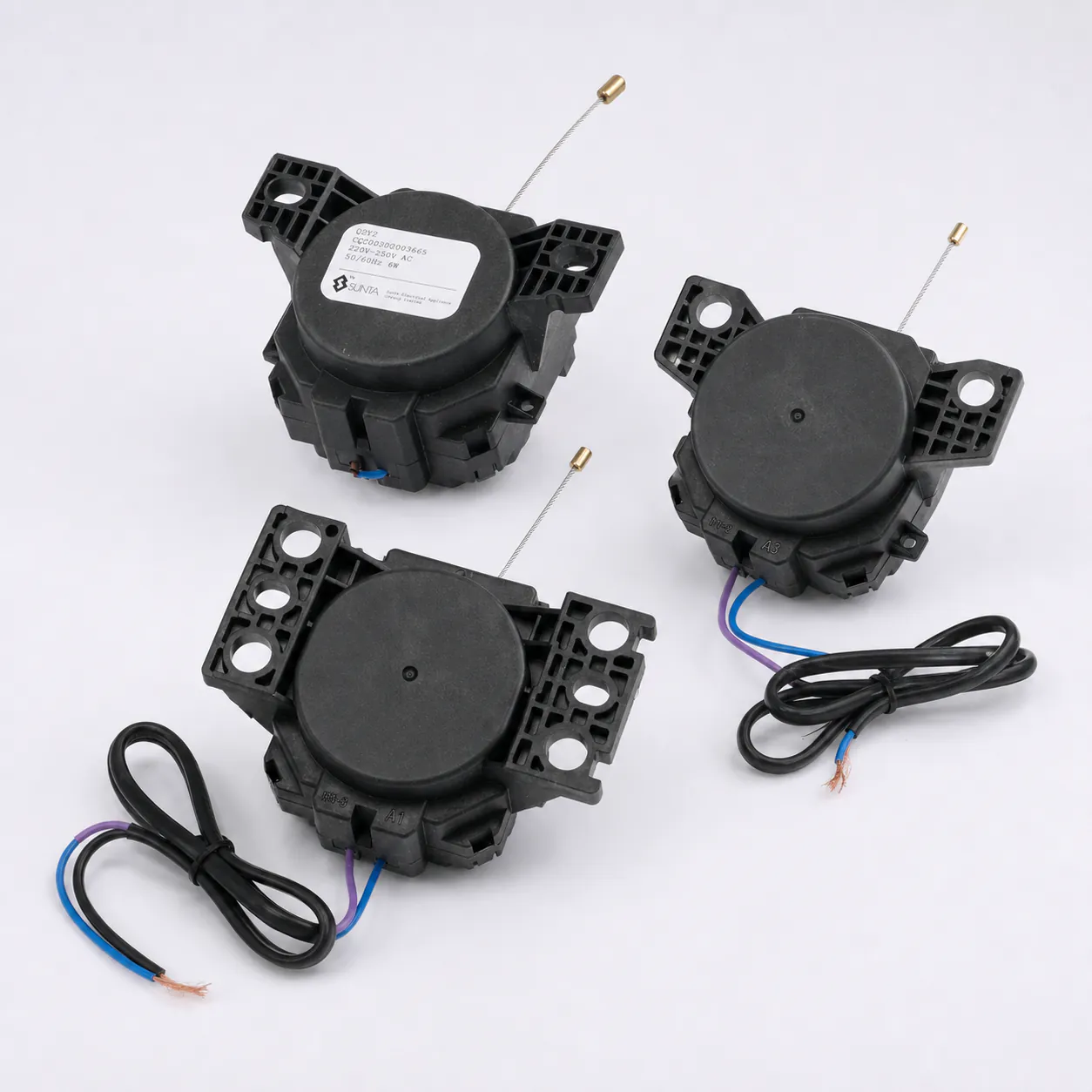

Drain Motor02.07

High-recovery-force washer drainage platform

Drain Motor

QDYZ-MN

ApplicationAutomatic washing machines

A high-recovery-force round platform for automatic-washer drainage mechanisms.

Recovery force
>80 N
Reset time
<1 s
Traction time
<7 s
Steel-wire length
38±1 mm
Working voltage
220 V, 60 Hz
Stroke / pitch
23±1 / 78±1 mm
Product page→Request a quote→
