Dishwasher water-routing components

Diverter Valve Series

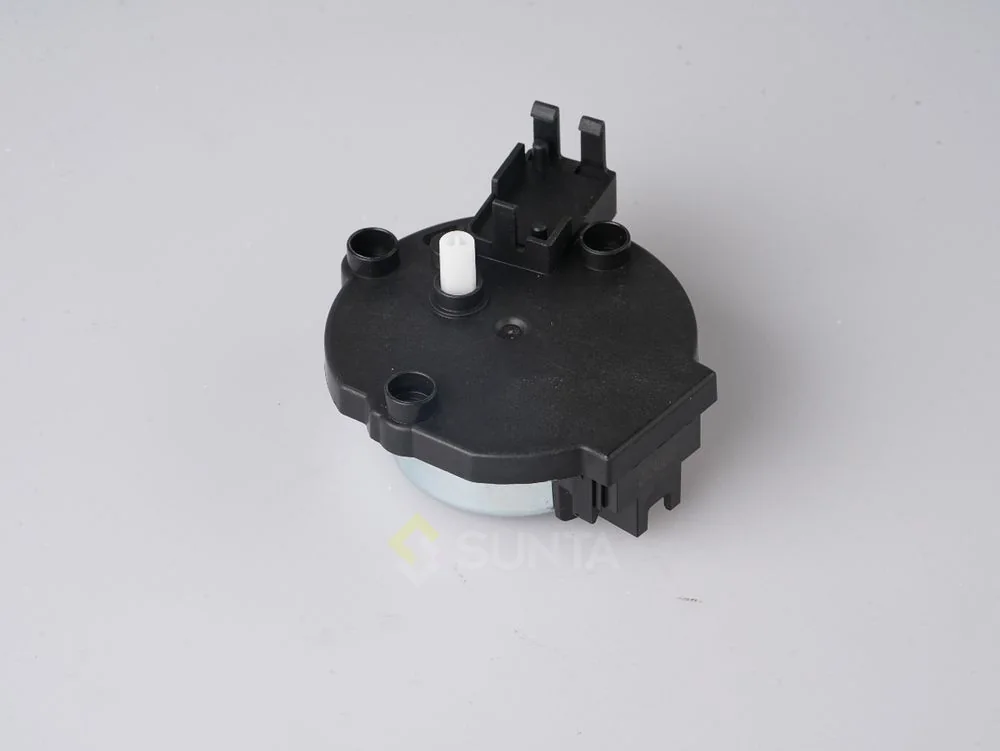

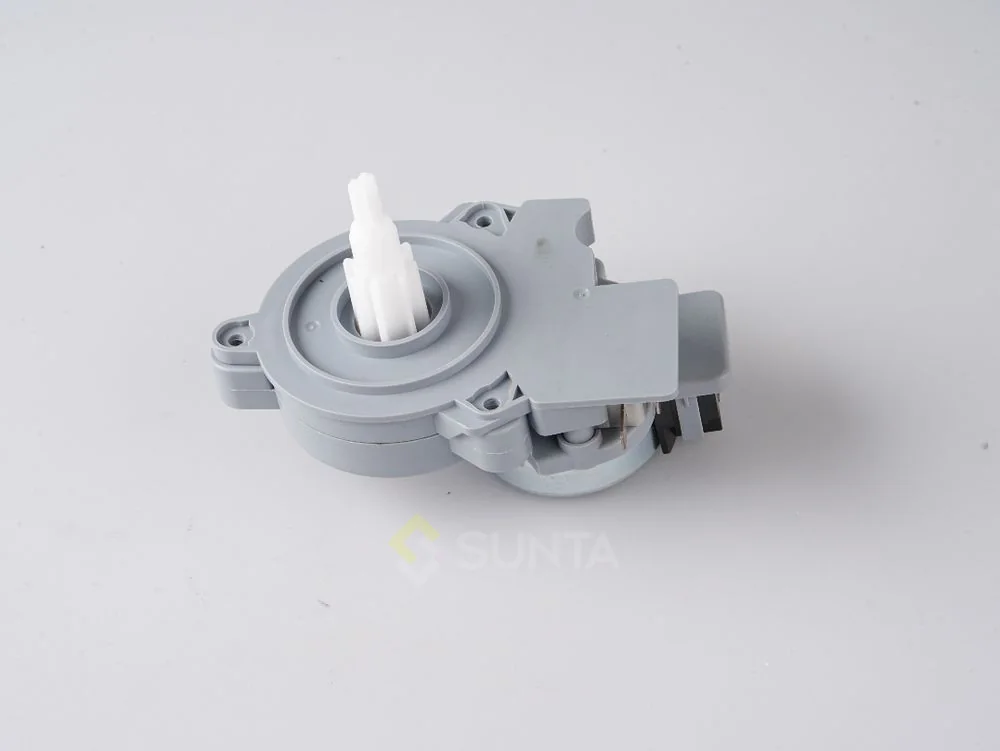

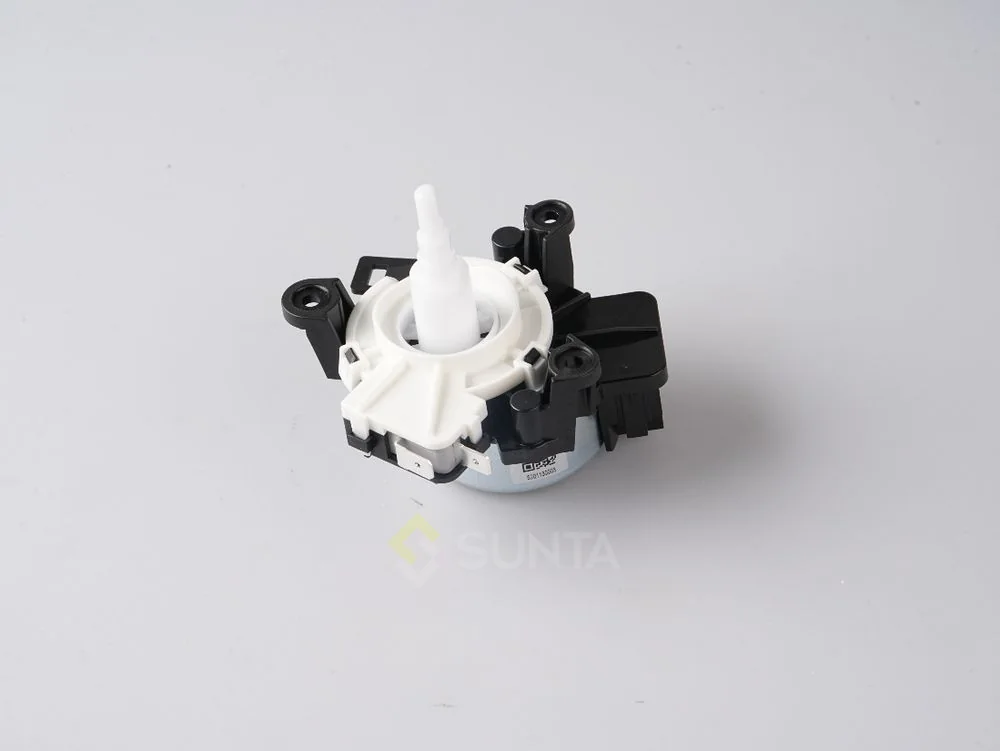

Four configurations offer different housings, output shafts and mounting interfaces for dishwasher water routing. Confirm the configuration and appliance interfaces for each program.

Request a quote →Download specification PDF ↓

Public data revised · 2026-10-09

APPLICATION & DATA

Dishwasher water routing

Public selection data. Voltage, frequency, output, mounting and leads are confirmed by model and approved drawing.

Working voltage
195-240 V
Current
<35 mA
Output torque
>50 N·cm
Output speed
4±0.03 rpm
Rotation direction
CCW

DRAWINGS & PROJECT DOCUMENTS

Confirm fit, interfaces & validation

Download the public specification above. Request mounting and terminal views, dimensional drawings, configuration options and applicable certificates for your model.

  • Appliance location & available space
  • Electrical & mechanical interfaces
  • Load, life & test conditions
  • Target market & customer standards
Discuss this model →
Diverter Valve Series Configuration 01

Diverter Valve Series Configuration 01
